Diamondback

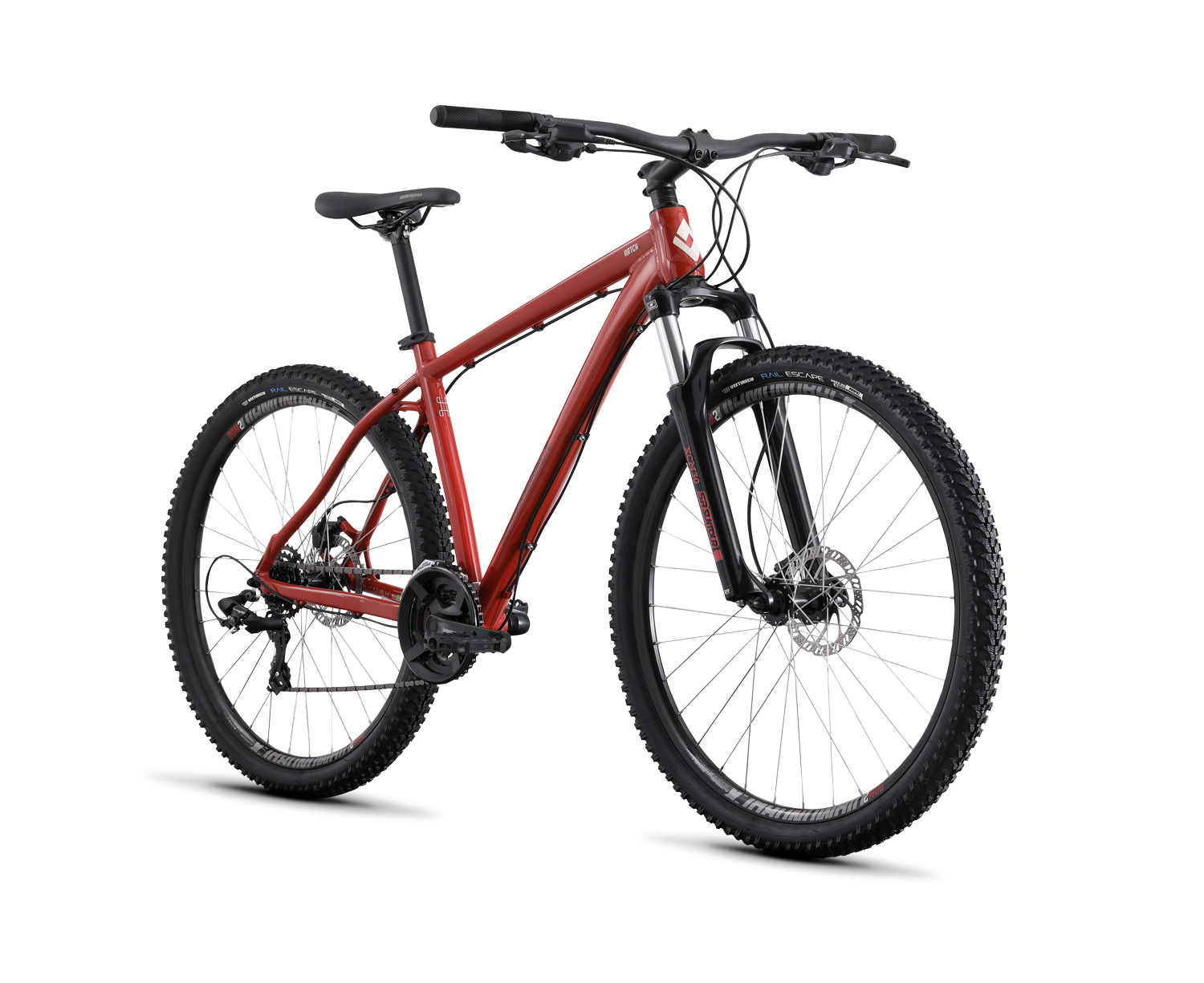

Hatch 3

$775.00

Size: XS/14 (27.5) 5'1" - 5'4"
Description

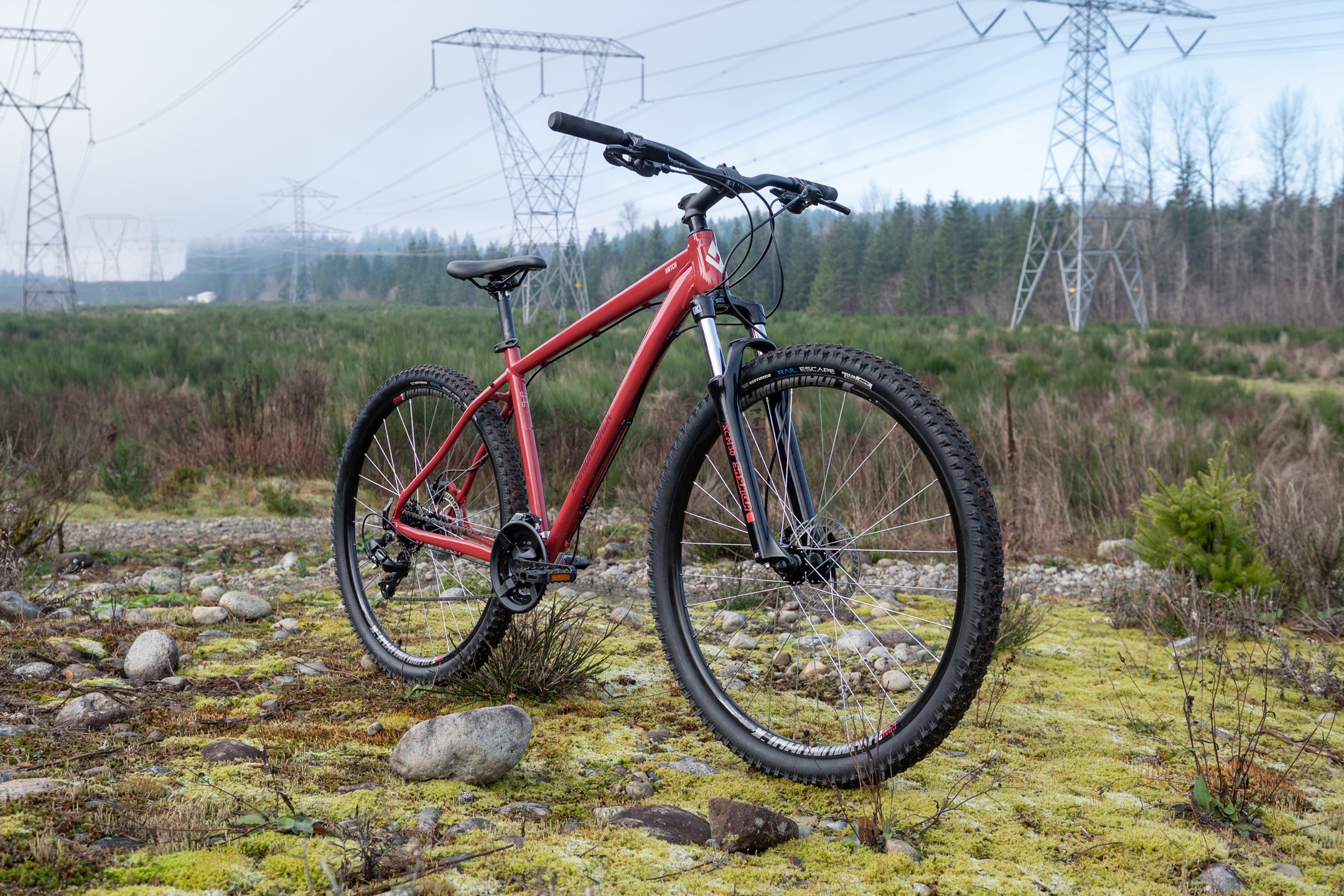

At home on dirt, gravel, and pavement, the Hatch 3 keeps the adventure going when it’s time to explore the path less travelled. To give you the ideal balance of stability and easy handling, the Hatch features Progressive Wheel Sizing, using the wheel size that best matches the rider size. A 100mm travel fork and grippy 2.25-inch wide knobby tires help you easily roll over bumps and potholes with confidence. With 21 gear combinations at your fingertips, you’ll always find a comfortable pedaling pace, and Tektro hydraulic disc brakes provide great stopping power. Built-in eyelets allow you to mount a rear rack and fenders so you can also use the Hatch as a commuter bike or city bike.

Shipping & Returns

Multiple shipping options depending on your location. Free shipping on all bikes over $650 - all bikes below $650 will have a $49 shipping change per bike.

30-day return window, terms and conditions apply. See the Returns page for more details

Size: XS/14 (27.5) 5'1" - 5'4"

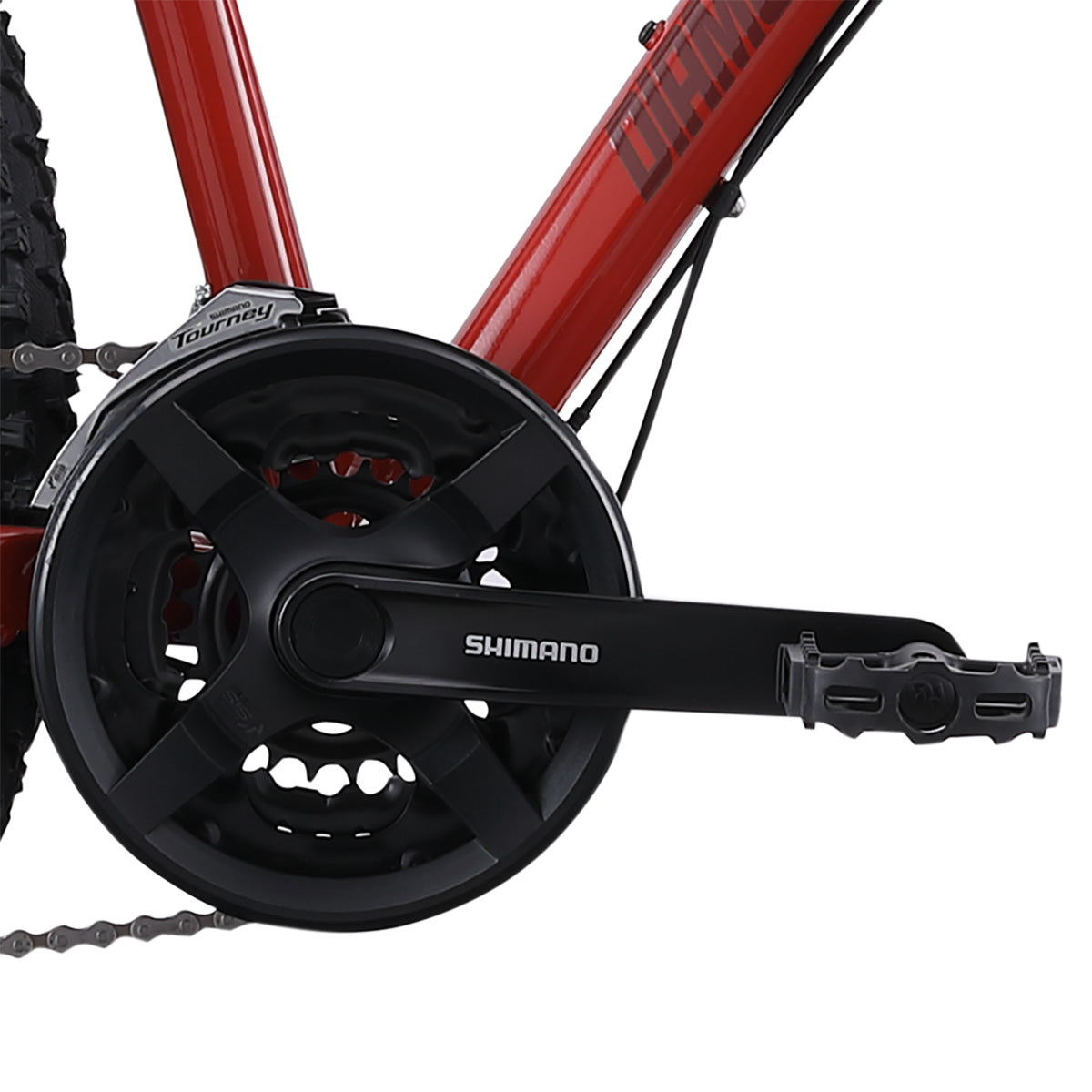

Crankset

The Shimano Tourney TY301 crankset features a 42/34/24T chainring setup, offering smooth shifting and reliable performance. It provides durable construction and efficient power transfer on a variety of terrains.

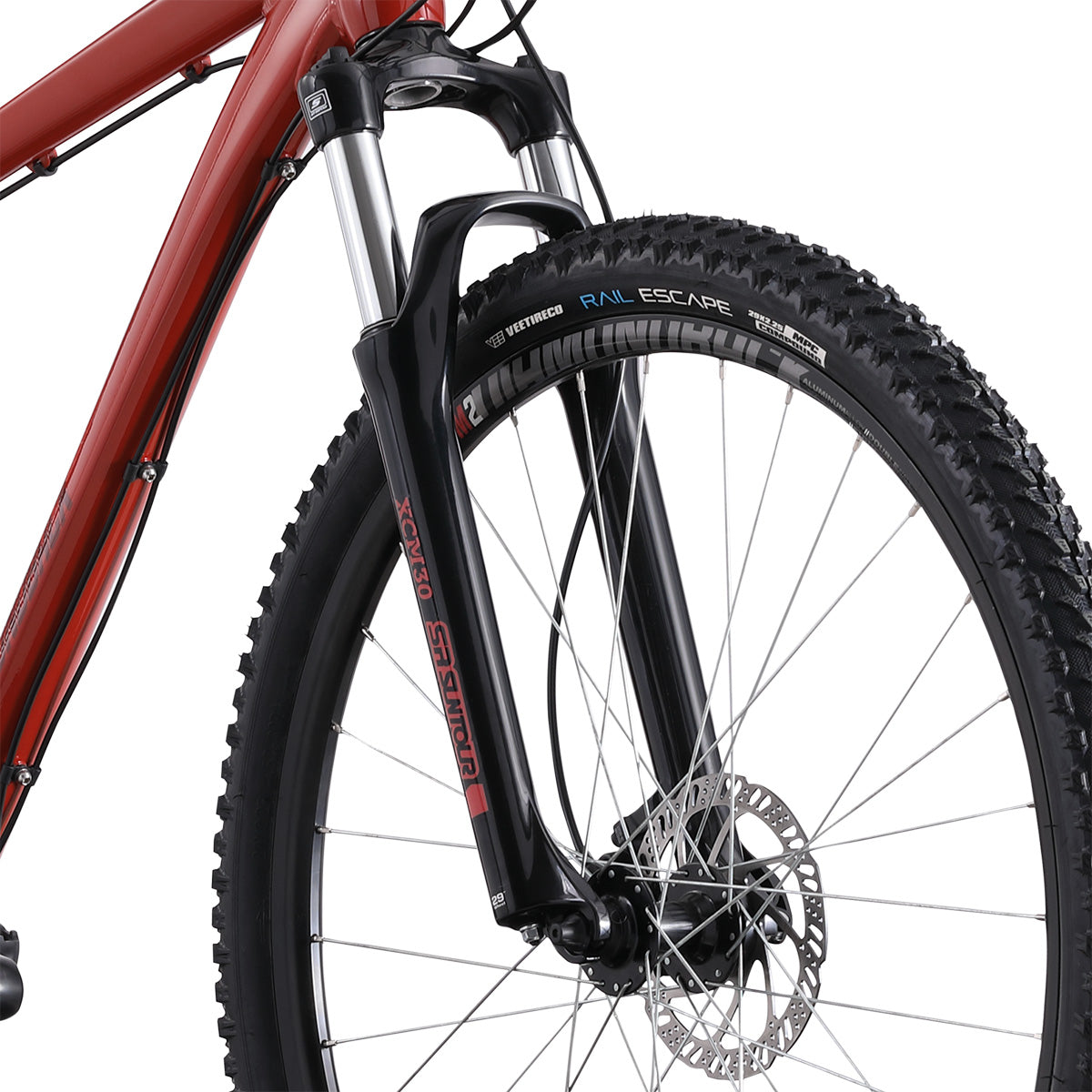

Fork

The SR Suntour XCM-DS fork offers 100mm of travel with a pre-load adjuster for customizable suspension. Designed for IS post mount discs, it delivers smooth performance and reliability for entry-level mountain biking.

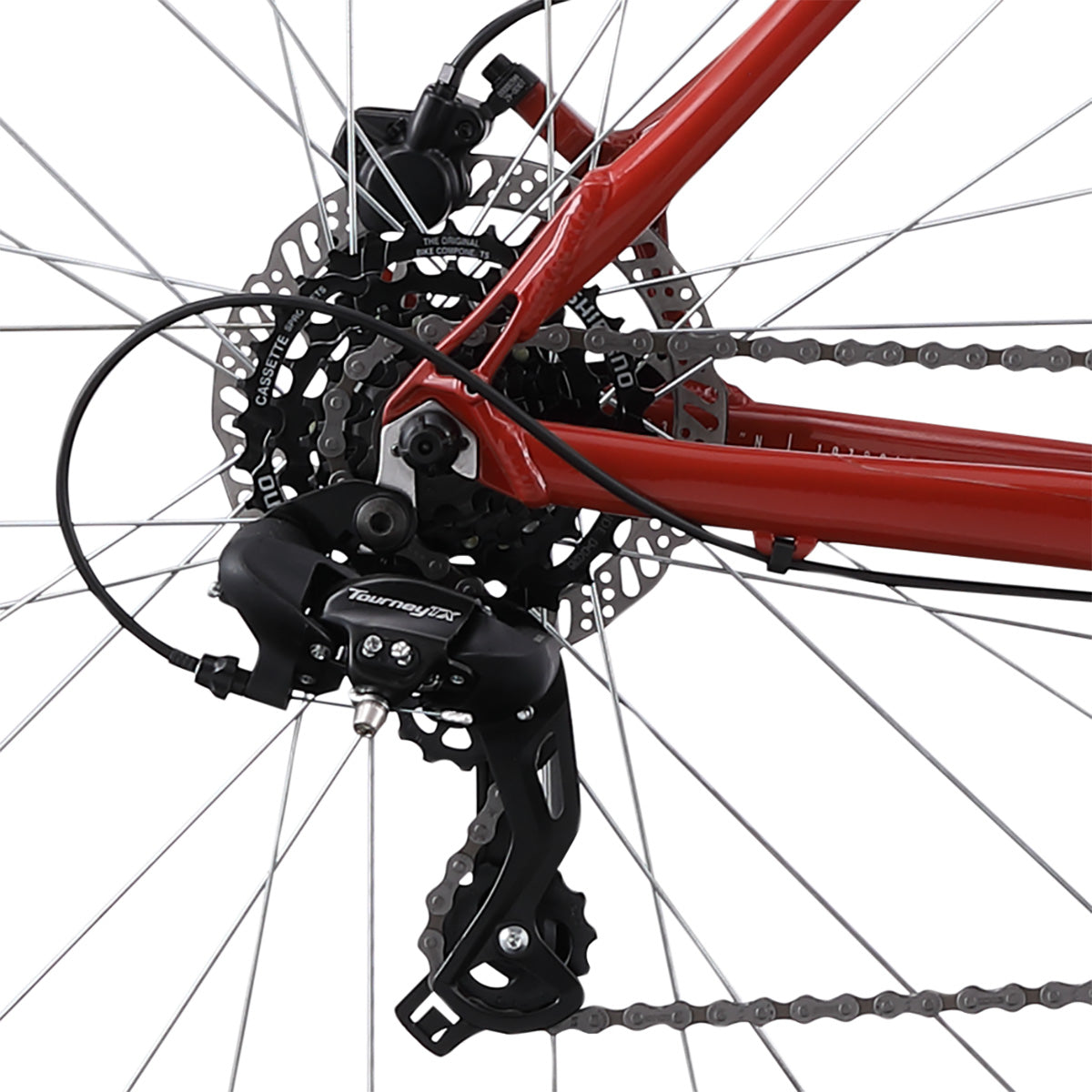

Rear Derailleur

The Shimano Tourney TX800 features a 7-speed drivetrain with smooth, reliable shifting. Itt offers durability and efficient performance, making it perfect for casual riders on various terrains and conditions.

SPECIFICATIONS
FRAME

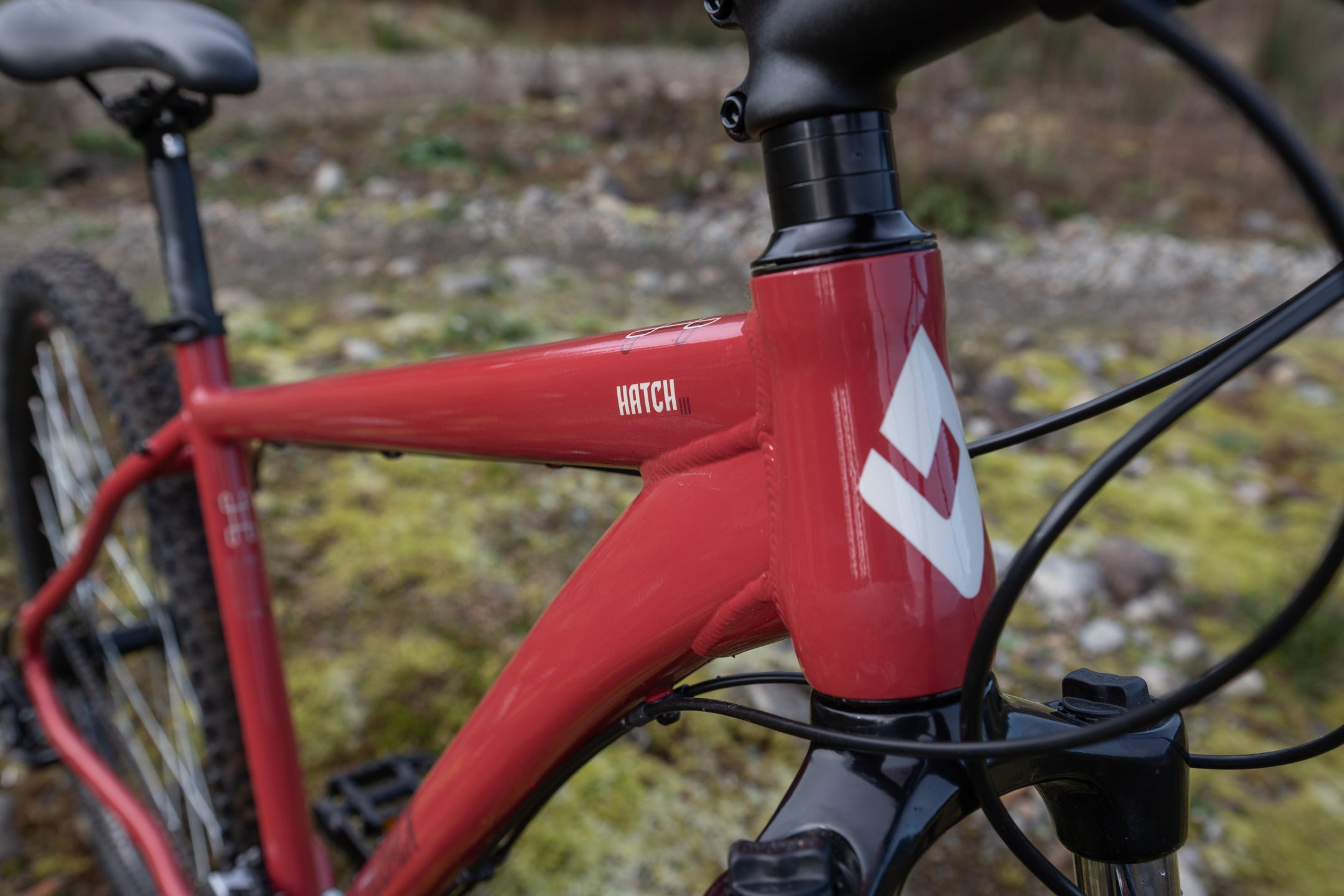

Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)

COG SET

Shimano GH20 Cassette, 7speed, 12-32 Tooth

PEDALS

Wellgo Plastic Body

REAR SHOCK
CHAIN

KMC Z7

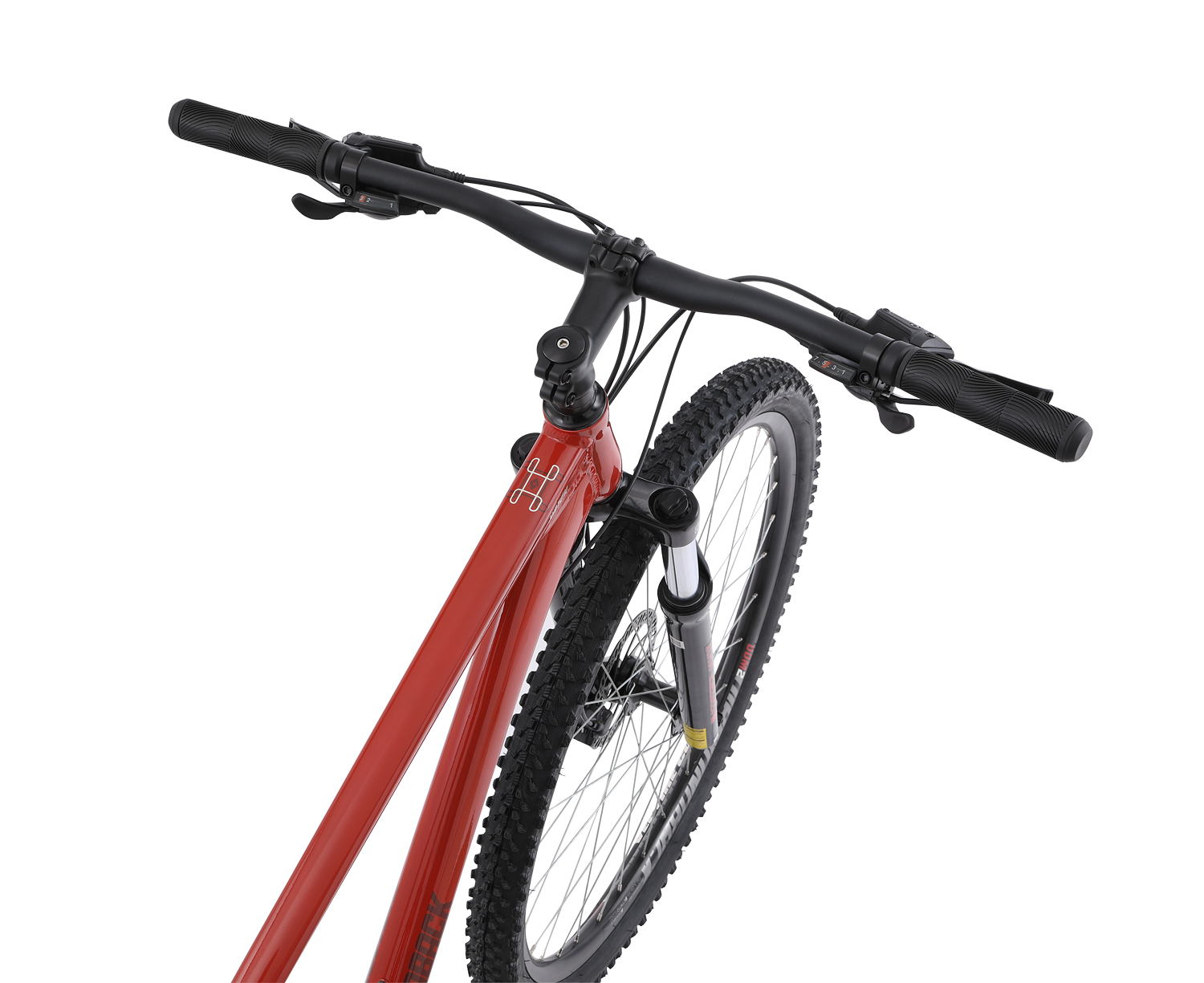

HANDLEBAR

Aluminum 31.8mm Bar, 25mm Rise

FORK

SR Suntour XCM-DS 100mm of Travel with Pre-Load Adjuster, for IS Post Mount Disc

FRONT HUB

Formula DC-20F, 6 Bolt, Disc, Quick Release

GRIPS

MTB Grip

HEADSET

1-1/8" Semi Integrated Cartridge Bearing

REAR HUB

Formula DC-22-7R, 6 Bolt, Disc, Quick Release

STEM

Aluminum MTB 31.8 Bar Bore Stem

CRANKS

Shimano Tourney TY301,42/34/24t

SPOKES

Stainless Steel

SEAT

MTB Saddle

BOTTOM BRACKET

Sealed Cartridge Bearing

RIMS

Aluminum MTB DDM-2 Double Wall, 32 hole, Not Taped

SEATPOST

Aluminum 27.2 Post with 15mm Offset

FRONT DERAILLEUR

Shimano Tourney TY500 Dual Pull

TIRES

Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25", Non Tubeless Tire

EXTRAS

Rack, Fender and Bottle Mounts, Non Tubeless Compatible

REAR DERAILLEUR

Shimano Tourney TX800

BRAKE LEVERS

Tektro M275 Hydraulic

PRODUCT ID

4732

SHIFTER

Shimano M310 3x7 Speed Rapid Fire Shifter

* Specifications are subject to change without notice
